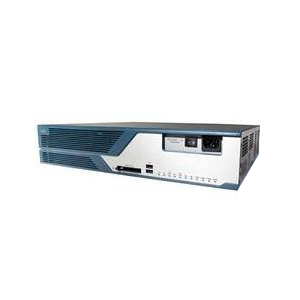

The integrated services routing architecture of the Cisco 3825 builds on the powerful Cisco 3700 Series routers designed to embed and integrate security and voice processing with advanced services for rapid deployment of new applications, including application layer functions, intelligent network services, and converged communications. The Cisco 3825 supports the bandwidth requirements for multiple Fast Ethernet interfaces per slot, time-division multiplexing (TDM) interconnections, and fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE), while still supporting the existing portfolio of modular interfaces. This ensures continuing investment protection to accommodate network expansion or changes in technology as new services and applications are deployed. By integrating the functions of multiple separate devices into a single compact unit, the Cisco 3825 dramatically reduces the cost and complexity of managing remote networks.
Number of Ports:
2
Gigabit Ethernet Port:
Yes
Interfaces/Ports:
2 x USB
Management:
Cisco Router and Security Device Manager (SDM) Command-Line Interface (CLI) Simple Network Management Protocol (SNMP)
Protocols:
SSH v2
Security Features:
Secure Shell Integrated hardware for offload of encryption services processing supports IPSec DES, 3DES, and AES 128, AES 192, and AES 256 encryption modes
Standard Memory:
256 MB
Maximum Memory:
1 GB
Memory Technology:
DRAM
Flash Memory:
64 MB
Operating System:
Cisco 3825 IOS IP BASE
Input Voltage:
220 V AC
Input Voltage Range:
100 V AC to 240 V AC
Input Current:
3 A @ 110 V AC
Frequency:
50 Hz or 60 Hz
Power Consumption:
210 W
Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
3.5"
Width:
17.1"
Depth:
14.7"
Weight (Approximate):
23 lb
Package Contents:
3825 Router Cisco 3825 IOS IP BASE Device manager for routers (ROUTER-SDM) 256MB SDRAM default memory for 3800 (MEM3800-256D-INCL) 64MB Cisco 3800 Compact Flash Memory Default (MEM3800-64CF-INCL) Blank WAN Interface Card Panel (WIC-BLANK-PANEL) Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL) Cisco 3825 AC power supply (PWR-3825-AC) Power Cord, 110V (CAB-AC) RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access One 2.54-mm (0.100 in.) centerline, single row shunt Ground lug and two mounting screws One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment) One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment) Cisco Product Registration Card Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document Cisco Router and Security Device Manager (SDM) Quick Start Guide document Cisco 3800 Series Integrated Services Routers Quick Start Guide
Additional Information:
Network-Module slots: These slots can accommodate a standard network-module, enhanced-network-module (NME), enhanced-extended-network-module (NME-X), and high-density extension module (EVM-HD) HWIC slots: These slots also support VICs, VWICs, and WICs PVDM slots: These slots accommodate digital-signal-processor (DSP) modules for packet voice processing Rack-Mounting: National Equipment Building Standard (NEBS)/European Telecommunication Standards Institute (ETSI) options Operation Altitude: Up to 6500 ft (2000m), derate 1 C per 1000 ft Noise Level: 50 dBa typical, 53 dBa maximum
System Requirements:
Minimum Cisco IOS Software release: 12.3(11)T
Certifications & Standards:
IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-TX IEEE 802.3ab: 1000BASE-T USB 1.1 Safety: UL 60950 CAN/CSA C22.2 No. 60950 EN 60950 AS/NZS 60950 EMC: 47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 EN 300386 EN 61000 TELCOM: 47 CFR, Part 68 TIA/EIA/IS-968 CS-03 RTTE Directive
Standard Warranty:
90 Day Limited
