Manufacturer:

Cisco Systems, Inc

Manufacturer Part Number:

CISCO3825-DC

Manufacturer Website Address:

www.cisco.com

Brand Name:

Cisco

Product Series:

3800

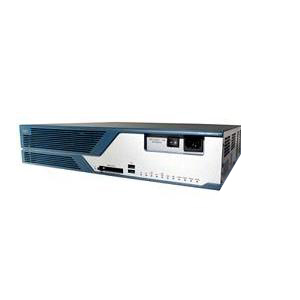

Product Name:

3825 Integrated Services Router

Product Type:

Integrated Services Router

Number of Ports:

2

Gigabit Ethernet Port:

Yes

Interfaces/Ports:

2 x USB

Connectivity Media:

Twisted Pair 10/100/1000Base-T

Number of Expansion Slots:

13

Expansion Slots:

(2 Total) NME

Management:

Cisco Router and Security Device Manager (SDM 2.0) Command-Line Interface (CLI) Simple Network Management Protocol (SNMP)

Protocols:

TCP/IP

Standard Memory:

256MB

Maximum Memory:

1GB

Memory Technology:

SDRAM

Flash Memory:

64 MB

Status Indicators:

SYS ACT SYS PWR RPS AUX PWR AIM0 AIM1 PVDM0 PVDM1 PVDM2 PVDM3 CF SFP GE0: Link GE0: Speed GE1: Link GE1: Speed

Operating System:

Cisco 3825 IOS IP BASE

Input Voltage Range:

24V DC to 60V DC

Input Current:

12A @ 24V DC

Power Consumption:

210W

Power Source:

AC Adapter

Redundant Power Supply:

Yes

Temperature:

-40 F (-40.0 C) to 185 F (85.0 C) Non-operating

Humidity:

5% to 95% Non-condensing Relative Humidity

Thermal Dissipation:

1100 BTU/h

Compatible Rack Unit:

2U

Form Factor:

Rack-mountable

Dimensions:

3.5" Height x 17.1" Width x 14.7" Depth

Weight:

23 lb

Package Contents:

3825 Router Cisco 3825 IOS IP BASE Device manager for routers (ROUTER-SDM) 256MB SDRAM default memory for 3800 (MEM3800-256D-INCL) 64MB Cisco 3800 Compact Flash Memory Default (MEM3800-64CF-INCL) Blank WAN Interface Card Panel (WIC-BLANK-PANEL) Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL) CISCO3825 DC power supply (PWR-3825-DC) RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access One 2.54-mm (0.100 in.) centerline, single row shunt Ground lug and two mounting screws One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment) One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment) Cisco Product Registration Card Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document Cisco Router and Security Device Manager (SDM) Quick Start Guide document Cisco 3800 Series Integrated Services Routers Quick Start Guide

Additional Information:

Network-Module slots: These slots can accommodate a standard network-module, enhanced-network-module (NME), enhanced-extended-network-module (NME-X), and high-density extension module (EVM-HD) Maximum number of network modules, NMEs, and NME-Xs supported: 2 Maximum number of NMD/NME-XDs supported: 1 Maximum number of EVM-HDs supported: 1 HWIC slots: These slots also support VICs, VWICs, and WICs PVDM slots: These slots accommodate digital-signal-processor (DSP) modules for packet voice processing Rack-Mounting: National Equipment Building Standard (NEBS)/European Telecommunication Standards Institute (ETSI) options Operation Altitude: Up to 6500 ft (2000m), derate 1C per 1000 ft Noise Level: 50 dBa typical, 53 dBa maximum

System Requirements:

Minimum Cisco IOS Software release: 12.3(11)T

Certifications & Standards:

USB 1.1 IEEE: IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-TX IEEE 802.3ab: 1000BASE-T Safety: UL 60950 CAN/CSA C22.2 No. 60950 EN 60950 AS/NZS 60950 EMC: 47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 EN 300386 EN 61000 TELCOM: 47 CFR, Part 68 TIA/EIA/IS-968 CS-03 RTTE Directive

Standard Warranty:

90 Day Limited
