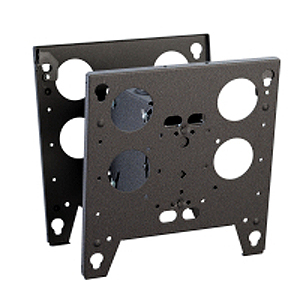

Advanced functionality for public transportation, digital signage and data presentation in high-traffic commercial zones and theme entertainment venues, Chief's PDC-2397 Dual Ceiling Mount securely holds displays back-to back in either portrait or landscape mode. This PDC allows smooth, easy pitch adjustment on a gravity-centered axis point. Cables can be routed through the mount for a clean appearance.
Load Capacity:
350 lb Maximum -
Package Contents:
PDC Dual Ceiling Mount Includes:
PAC-140 Q-Clamp accessory
2 x Plasma Side Bracket
4 x Mounting Button - Tapped
4 x (10-24 x ) Button Head Cap Screw
6 x (.5 x .316 x .5) Nylon Spacer
6 x (M5 x 25mm) Phillips Head Cap Screw
10 x (.50 x .252 x 1.375) Nylon Spacer
2 x (.50 x .26 x 1.625) Nylon Spacer
4 x (.5 x .219 x 1.0) Nylon Spacer
4 x (M5 x 90mm) Socket Head Cap Screw
2 x (M5 x 80mm) Phillips Head Cap Screw
2 x (M5 x 75mm) Socket Head Cap Screw
1 x 1/8 Allen Key
1 x M4 Allen Key
Additional Information:
Uses 2" NPT accessories for added strength
Display installs in portrait/landscape views (some pitch is lost in portrait for 60" screens)
Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
Manual Yaw Adjustment: 360 degrees
Roll Adjustment: 3 degrees
Pitch Adjustment: 5 degrees up, 15 degrees down on gravity-centered axis point
Stackable mounting solution - an additional length of 2" NPT pipe can be attached to the bottom of the mount allowing additional units to be stacked underneath
Compatibility:
Extra Large Flat Panel Display
Certifications & Standards:
UL
