Manufacturer

Axis Communications

Manufacturer Website Address

www.axis.com

Marketing Information

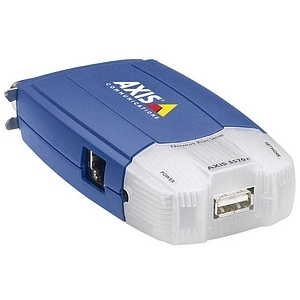

The AXIS 5570e, with built-in IBM protocol converters, is equipped with one USB and one parallel port, which enable printing to two printers simultaneously. The AXIS 5570e is the first multi-session USB print server for the IBM environment.

Product Type

Print Server

Dimensions

1.1" Height x 2.4" Width x 4.6" Depth

Standard Warranty

1 Year Limited

Data Transfer Rate

100Mbps Fast Ethernet Full-duplex

Manufacturer Part Number

0193-004

Brand Name

Axis

Marketing Information

The AXIS 5570e, with built-in IBM protocol converters, is equipped with one USB and one parallel port, which enable printing to two printers simultaneously. The AXIS 5570e is the first multi-session USB print server for the IBM environment.

Product Type

Print Server

Data Transfer Rate

100Mbps Fast Ethernet Full-duplex

Protocols

DNS

Compatibility

Supported Printers: Printers and Digital Copiers: Brother Canon Epson HP IBM Kyocera, Lexmark Minolta NEC Oce OKI Ricoh Sharp Star TEC Toshiba Zebra Xerox etc IBM capabilities: IBM Mainframe (zSeries): OS: IBM S/370, S/390, 30xx, 43xx, 47xx, 937x,81xx TCP/IP based protocols: TN3270E, PPR/PPD,LPR/LPD and RawTCP SNA support: LU1 and LU3 (node type 2.0) for IBM 3174 Control unit emulation Data streams: IPDS, SCS, 3270DS as well as PostScript, PCL and ASCII Emulated printers: 4332, 4028, 3812 model 2,3816 model 01S and 01D, 4224, 4230, 3287,3268, 4214 and 3262 IBM AS/400 (iSeries): OS: IBM OS/400 TCP/IP based protocols: TN5250E, PPR/PPD,LPR/LPD and RawTCP. SNA support: LU6.2 (node type 2.1) for IBM 5494 Control unit emulation Data streams: IPDS, SCS as well as PostScript,PCL and ASCII Emulated printers: 4332, 4028, 3812, 3816,4214-2, 5224, 5225, 5256, 4230, 5x27-2 KS,5x27-3 KSSM, 5x27-3, 5x27-5 Supported Systems: PC: Windows 95 Windows 98 Windows Me Windows NT Windows 2000 Windows XP Windows 2003 Novell NetWare: Novell NetWare 3.X Novell NetWare 4.X Novell NetWare 5.X Novell NetWare 6.X. Supports bindery and NDS mode.Supports user messages and printer status. NDPS supported over IP and IPX. Support for iPrint using both LPR and IPP protocols. PSERVER (IP/IPX), RPRINTER/NPRINTER supported Apple MacOS 7, 8, 9, MacOS X version 10.X All Unix systems supporting TCP/IP (Linux, BSD, System V, Solaris, HP-UX, IBM AIX, Silicon Graphics IRIX, etc.) Other systems supporting TCP/IP:IBM (MVS,VM, VSE, OS/400), DEC, VMS Microsoft LAN Manager IBM LAN Server LANtastic Supported Web browsers: Any standard web browser (Netscape 4.x or higher) MS Internet Explorer 4.x or higher

Input Voltage

5.1 V DC

Power Consumption

5.6 W Maximum

Humidity

10 to 90% Non-condensing

Dimensions

1.1" Height x 2.4" Width x 4.6" Depth

Weight

0.18 lb

Standard Warranty

1 Year Limited

Status Indicators

2 LED indicators: Power and Network Test button for information printouts

Memory

8MB RAM
