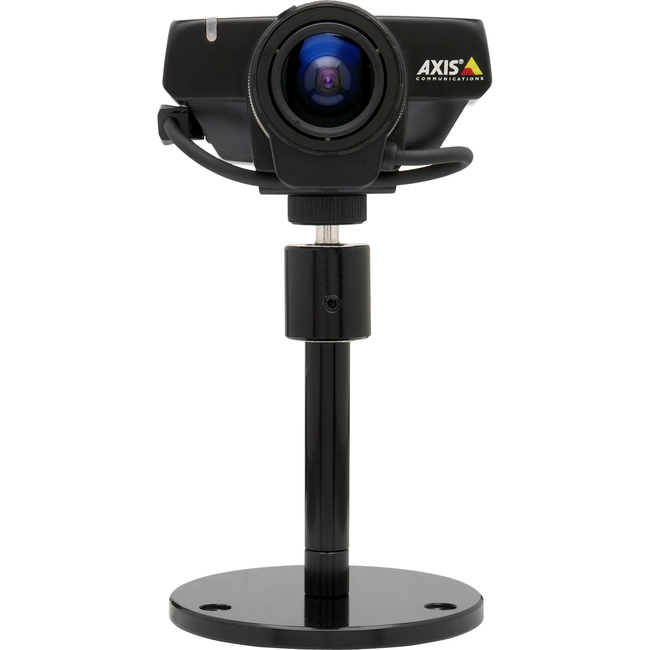

The Axis 221 Day & Night Network Camera is a high performance camera for professional surveillance and remote monitoring. Axis 221 is designed to meet demanding security installations under all light conditions and is supported by the industry s largest base of application software for video and alarm management.
Manufacturer:
Axis Communications
Manufacturer Part Number:
0221-004
Manufacturer Website Address:
www.axis.com
Brand Name:
Axis
Product Name:
221 Day & Night Network Camera
Product Type:
Surveillance/Network Camera
Exposure Control:
Configurable
Connectivity Technology:
Cable
Protocols:
FTP
Interfaces/Ports:
1 x DC Power Input
Input Voltage:
10 V AC to 24 V AC
Power Consumption:
5.5W
Package Contents:
221 Day & Night Network Camera
Power supply 9 V DC
Stand
Connector kit
Installation Guide
CD-ROM:
Installation tool
Software
User's Manual
MPEG-4 licenses (1 encoder, 1 decoder)
MPEG-4 decoder (Windows)
Additional Information:
Power over Ethernet (IEEE 802.af) with power classification according to Class 2
Connectors Ethernet:
10BaseT/100BaseTX, RJ-45
Terminal block for I/O (2 alarm inputs, 1 output)
RS-485/422 half duplex port
Alternative power supply D-sub for RS-232 port
Processors and memory:
CPU: ETRAX 100LX 32bit
Video processing and compression: ARTPEC-2
Memory: 32 MB RAM, 8 MB Flash
System Requirements:
Pentium III CPU 500 MHz or higher, or equivalent AMD
128MB RAM
AGP graphic card, Direct Draw, 32MB RAM
Windows XP, 2000, NT4.0*, ME*, 98*
DirectX 9.0 or later
Internet Explorer 5.x or later
* Motion JPEG only
Compatibility:
PAL
NTSC
Certifications & Standards:
EMC:
EN55024:1998 + A1 + A2
EN61000-6-1:2001
EN61000-6-2:2001
EN55022: 1998 + A1 Class B
EN61000-3-2:2000
EN61000-3-3:1995 + A1
FCC Part 15 Subpart B Class B by compliance with EN55022:1998 Class B
VCCI:2003 Class B ITE
C-tick AS/NZS 3548
Canadian ICES-003 B by compliance with EN55022:1998 Class B
Safety:
EN60950
UL
CSA
Security Features:
Multiple user access levels with password protection
IP address filtering, HTTPS encryption
Platform Support:
PC
Standard Warranty:
1 Year Limited
