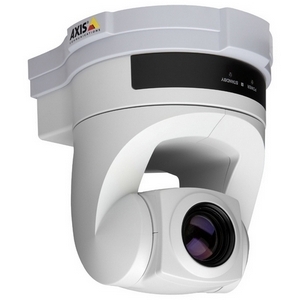

Axis 214 PTZ Network Camera is a high performance camera for professional surveillance and remote monitoring. It combines a high quality color camera with the flexibility of remote pan/tilt/zoom operations through operator control. Incorporating an 18x optical motorized lens with auto focus, the Axis 214 PTZ allows the user to zoom in on a small or distant object with exceptional clarity. The movability of the camera enables it to cover a wide field of view. With automatic day/night functionality and the highly light sensitive CCD, this camera provides perfect color images in low-light conditions as well as sharp black and white pictures in extremely poor lighting conditions. The built-in audio support enables remote users to not only view, but also listen in on an area and communicate orders or requests to visitors or intruders, thereby increasing the monitoring options. Pre- and post-alarm image buffering, video motion detection, scheduled and triggered event functionality with alarm notification together with two-way audio makes the Axis 214 PTZ ideal for remotely monitoring people and property. This network camera is designed for use in mid-sized businesses, such as retail stores and supermarkets, transmitting images over the local area network or the Internet.
Manufacturer:
Axis Communications
Manufacturer Part Number:
0246-004
Manufacturer Website Address:
www.axis.com
Brand Name:
Axis
Product Model:
214
Product Name:
214 PTZ Network Camera
Product Type:
Surveillance/Network Camera
Image Sensor Type:
CCD
Illumination:
0.3
Color Supported:
Monochrome
Tilt:
90 30
Swivel:
170 170
Focal Length:
4.10 mm to 73.80 mm
Optical Zoom:
18x
Digital Zoom:
12x
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
FTP
Height:
7"
Width:
6"
Depth:
6.2"
Weight (Approximate):
2.45 lb
Package Contents:
214 PTZ Network Camera Ceiling mount kit Installation Guide CD with User's Manual Demo software Installation and management tools Connector kit MPEG-4 licenses (1 encoder, 1 decoder) MPEG-4 decoder (Windows) Indoor power supply 12 V, 3 A
Additional Information:
Processors and Memory: CPU: ETRAX 100LX 32bit Video Processing and Compression: ARTPEC-2 RAM: 32MB, Flash: 8MB Battery backed-up real-time clock Users: 20 simultaneous users Unlimited number of users using multicast (MPEG-4)
System Requirements:
PC: Pentium III CPU 500MHz or higher, or equivalent AMD 128MB RAM AGP graphic card, Direct Draw, 32MB RAM Windows XP, 2000, Server 2003 DirectX 9.0 or later Internet Explorer 6.x or later
Compatibility:
NTSC
Security Features:
Multiple user access levels with password protection IP address filtering HTTPS encryption
Platform Supported:
PC
Standard Warranty:
1 Year Limited
