Manufacturer

Axis Communications

Manufacturer Website Address

www.axis.com

Marketing Information

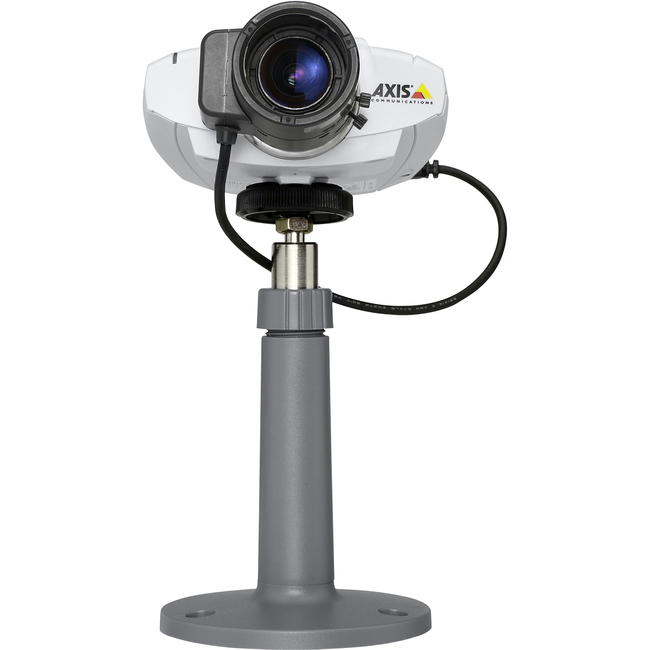

The AXIS 211A Network Camera is a professional network camera that lets remote users see, hear and speak over IP networks. It is suitable for surveillance and remote monitoring applications.

Focus Distance

0.65ft to Infinity

Protocols

SOCKS

Input Voltage

7 V DC to 20 V DC

Sensor Type

CCD

Illumination

0.75 Lux - f/1.0

Weight

12.17 oz - Excluding power supply

Manufacturer Part Number

0223-004

Brand Name

Axis

Marketing Information

The AXIS 211A Network Camera is a professional network camera that lets remote users see, hear and speak over IP networks. It is suitable for surveillance and remote monitoring applications.

Input Voltage

7 V DC to 20 V DC

Humidity

20 to 80% Relative Humidity Operating

Weight

12.17 oz - Excluding power supply

Additional Information

Audio: Configurable for built-in or external microphone G.711 PCM 64 kbit/s, G.726 ADPCM 32 or 24 kbit/s, full duplex, half duplex, simplex or audio off Users: 20 simultaneous users of which 10 with audio Unlimited users using multicast (MPEG-4) Processors and memory: CPU: ETRAX 100LX 32bit Video processing and compression: ARTPEC-2 Flash: 8MB

Certifications & Standards

EMC: EN55024:1998 + A1 + A2 EN55022: 1998 + A1 Class B EN61000-3-2:2000 EN61000-3-3:1995 + A1 FCC Part 15 Subpart B Class B by compliance with EN55022:1998 Class B VCCI:2003 Class B ITE C-tick AS/NZS 3548 Canadian ICES-003 B by compliance with EN55022:1998 Class B Safety: EN60950 UL CSA

Platform Support

PC

Interfaces/Ports

1 x DC Power Input

Aperture Range

f/1

Focus Distance

0.65ft to Infinity

Protocols

SOCKS

Internal Memory

32 MB

Video Resolution

160 x 120

White Balance Modes

Configurable White Balance
