AverMedia Information, Inc

NV6480EXP

www.aver.com

AVerMedia

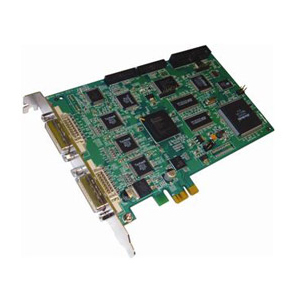

AVerDiGi Hybrid NV6480 Express Card

Network Video Recorder

PCI Express x1

Video Recording

NTSC

1920 x 1200

H.264

Video encryption supported One time or weekly schedule Programmable multiple masking zones Auto recycling when storage nearing full Intelligent pre-motion and post motion recording Fully de-interlace in 640x480 and 720x480 mode Scheduling can be done down to every quarter of an hour Record, enable network, backup, reboot and disabling alarms Recording up to 1920x1200 (Selected 2.3MPixel IP Cameras) Capable of recording audio channel(s) with full synchronization Recording modes: Alarm triggered/ sensor triggered/ motion detection/ continuous/ smart/ scheduled/ voice detection

PC

Plug-in Card

1 x AVerDiGi Hybrid NV6480 Express Card 1 x Installation CD (includes drivers, application program, manual) 1 x Quick User Guide 2 x Octopus Cables 1 x Watchdog Cable 1 x I/O Box

Display: Compact mode and advanced mode Adjustable frame rate and resolution on each camera Auto Scan with full screen display under 1, 4, 8, 9, 13, 16-camera display modes Digital zoom into specific area Pan/Tilt/Zoom (PTZ) cameras: PTZ script is available for adding new protocols Auto Gain Control (AGC) balance image quality Software based night view function enhances low light condition Search & Playback & Backup: Real time playback without having to disable recording/ network functions Powerful search: by date, time, camera, area, event, vision, POS text or log file Full screen playback Complete playback control: forward, backward, speed up, slow down Digital zoom into any designated area Export a single frame into a file or print out Set a segment and have it output as avi video clip Visual search by day, hour, minute, second Bookmark search: by time, description, protect recorded file from being recycled and show file status Direct backup to DVD-RW/CD-RW (requires Nero Ultra 6.0+) Remote Access: Simultaneous multiple remote live/ recorded surveillance via Internet Explorer 6 Backup remotely Central Management server controls multiple DVRs Remote monitoring / remote recording / playback remote recording/ playback server recording Full control of PTZ cameras remotely PDA handy view (Windows CE / Pocket PC 2002 or above) Two-way audio communication 1, 4, 9 and 16 screen divisions Remote E-map Choose from dial-up, Internet or LAN speed Dispatch server allows you to broadcast video stream to the public SDK support Alarm Notifications (on motion detected, video loss and/or sensor triggered): E-mail notifications FTP notifications Voice modem call out notification Turn relay on (light switch, alarm, etc) Plays warning sound (can be re-recorded) Start recording on multiple cameras (capture video from different angle) Send TV-out signals Launch E-maps Enlarge camera view Send SMS/MMS (Requires SMS Modem) Alert messages helps security follow proper standard operational procedures I/O Card: 4 sensor inputs and 4 relay outputs control included in package. Up to 96 Sensors/Relays possible with external third party I/O Box (Moxa brand) E-map: Shows the positions of cameras, sensors, and relays Store up to 8 different maps

CPU: Pentium 4.3.2 GHz or higher (Intel Core 2 Duo processor 2.4GHz (E6600) required for 30fps recording in 640x480) Motherboard: Intel 915, 945, 955, 965, 975 Chipset (VIA/SiS/Ali Chipset motherboards not supported) (Recommended Intel, ASUS, Gigabyte motherboards) 32-bit high color SVGA graphics card with at least 128MB video memory and DirectDraw, YUV Rendering Capability (AGP Recommended) RAM: 1024MB minimum PCI-Express x 1 Compliant HDD: 120GB or higher CD-ROM/ DVD-ROM CSA or PCI-E Gigabit LAN Sound card and Speakers Operating System: Windows XP Professional

2 Year Limited
