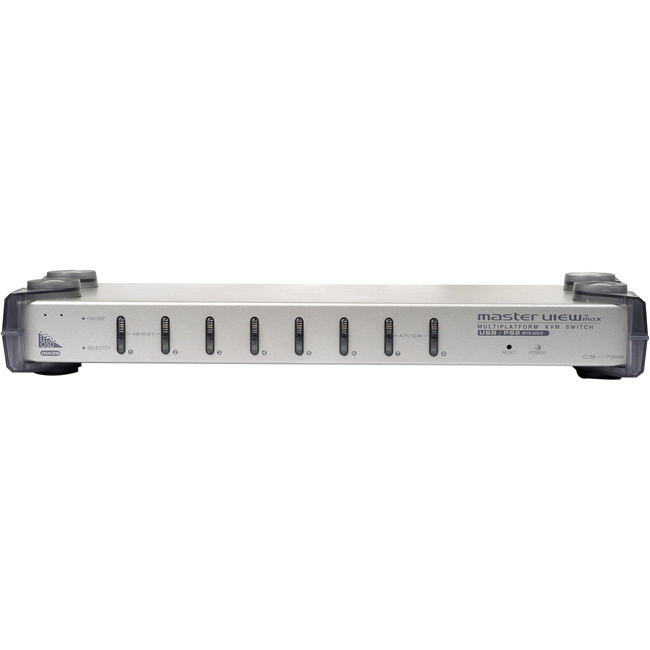

Aten MasterView Max KVM Switch

Computer > Enterprise Computing > KVM & Video Switches

ATEN TECHNOLOGIES

Price: $269.99

Availability: 3 In Stock

Mfg Part# CS1758

Quantity:

Product Information

Reviews

Pros / Cons

The CS-1758 USB KVM (Keyboard, Video, Mouse)Switch controls units that allow access and control of up to 8 (CS-1758) computers from a single USB keyboard, USB mouse, and monitor console. Since units can be cascaded to three levels, in a complete three stage installation, up to 73 CS-1758s can control up to 512 computers - all from the original single console. Although the switches use a USB keyboard and mouse for the console, they support both PS/2 and USB computers. Users have the choice of connecting the switch to a computer with PS/2 connectors or USB connectors depending on the cable used to link the switch to the computers.

General Information

Manufacturer:
Aten Technologies
Manufacturer Part Number:
CS1758
Manufacturer Website Address:
www.aten-usa.com
Brand Name:
Aten
Product Line:
MasterView
Product Name:
MasterView Max KVM Switch
Product Type:
Analog KVM Switch

Technical Information

Number of Computers:
8
Number of Users:
1 x Local User
Video Signals:
SVGA
Graphics Resolution:
2048 x 1536
Scan Intervals:
User Specified: 1-255 Seconds (default 5 seconds)
Security Features:
2 level password protection for OSD

Interfaces/Ports

User/Console Ports:
1 x Line Out
Computer Ports:
8 x Stereo Audio Line In
Other Ports:
1 x 4-pin RJ-11 Female

Power Description

Input Voltage:
5 V DC
Input Current:
2.60 A

Environmental Conditions

Temperature:
32 F (0 C) to 122 F (50 C) Operating
Humidity:
0 to 80% Non-condensing Relative Humidity

Physical Characteristics

Form Factor:
1U 19" Rack-mountable
Height:
2.6"
Width:
17.7"
Depth:
6.7"
Weight (Approximate):
6 lb

Miscellaneous

Package Contents:
1 x 8-port KVM 1 x Power adapter 1 x Firmware upgrade Cable 1 x User manual 1 x Quick Start Guide
Additional Information:
Dual interface support-supports computers with either PS/2 or USB Keyboard and mouse Easy to install-just plug the cables in Audio support allows sharing multimedia speakers and MIC phone Easy to operate - computer selection via front panel switches, intuitive OSD (on screen display), and Hot Keys Hot Pluggable - both console side and computer side can hot swappable and auto-detect device change LED Display for easy status monitoring Auto Scan Mode for monitoring all computers Complete keyboard emulation for error free booting Total capacity expandable to support 512 computers via 3 levels of cascading Supports special keys on Sun and Mac keyboards Designed for both desktop and rack mount
System Requirements:
Console A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation. A USB mouse A USB keyboard Computer The following equipment must be installed on each computer A VGA, SVGA or Multisync card. Either a Type A USB port, or PS/2 keyboard and mouse ports Cables Only ATEN CS Custom KVM cable sets, which are specifically designed to work with these switches, may be used. Depending on the KVM cable type, the switches can link to computers that use PS/2 connectors to transfer keyboard and mouse data as well as computers that use USB connectors
Compatibility:
Windows 98 or higher Mac OS 8.6 or higher Linux Red Hat 7.1 or higher Sun host systems Multimedia keyboard support
Certifications & Standards:
FCC Part 15
Platform Supported:
Mac
