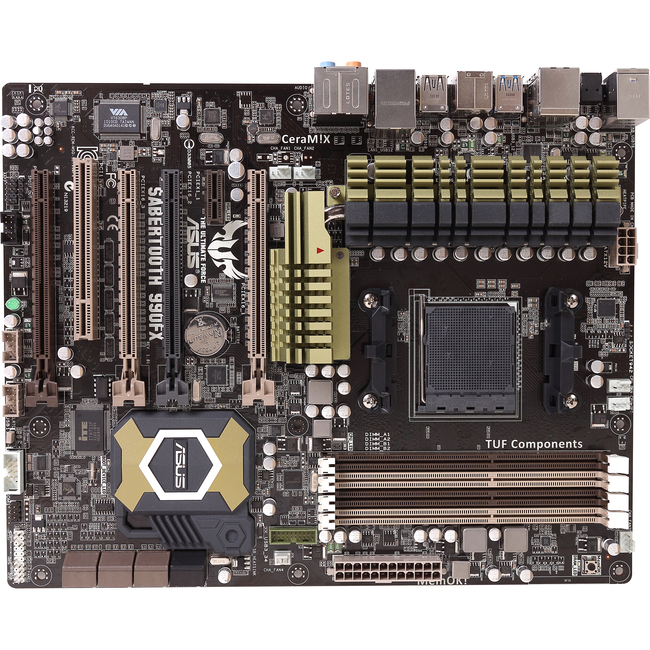

This motherboard supports latest AMD Socket AM3+ multi-core processors with up to 8-core native CPU cores and delivers better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process.
Manufacturer:
ASUS Computer International
Manufacturer Part Number:
SABERTOOTH 990FX
Manufacturer Website Address:
usa.asus.com
Brand Name:
Asus
Product Model:
SABERTOOTH 990FX
Product Name:
SABERTOOTH 990FX Desktop Motherboard
Product Type:
Desktop Motherboard
Number of Memory Slots:
4
Memory Form Factor:
DIMM
Maximum Memory:
32 GB
Memory Standard:
DDR3-1066/PC3-8500
Memory Technology:
DDR3 SDRAM
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
1+0
Number of Total Expansion Slots:
6
Number of PCI Slots:
1
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
5
Number of PCI Express x1 Slots:
1
Number of PCI Express x4 Slots:
1
Number of PCI Express x16 Slots:
3
eSATA:
Yes
Number of eSATA Ports:
2
Total Number of USB Ports:
12
Number of USB 2.0 Ports:
10
Number of USB 3.0 Ports:
2
Total Number of FireWire/i.LINK Ports:
1
Number of FireWire/i.LINK 400 Ports:
1
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Total Number of Onboard USB Ports:
6
Number of Onboard USB 2.0 Ports:
4
Number of Onboard USB 3.0 Ports:
2
Total Number of Onboard FireWire/i.LINK Ports:
1
Number of Onboard FireWire/i.LINK 400 Ports:
1
Onboard Serial Header:
Yes
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Power Supply Supported:
ATX12V
Form Factor:
ATX
Width:
12.0"
Depth:
9.6"
Package Contents:
SABERTOOTH 990FX Desktop Motherboard User's Manual ASUS Q-Shield 4 x SATA 6Gb/s Cables 1 x SLI Bridge 1 x Q-connector (2 in 1) 1 x TUF Certification Card 1 x TUF 5 Year Warranty Manual
Certifications & Standards:
ErP Ready FCC CE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
REACH
