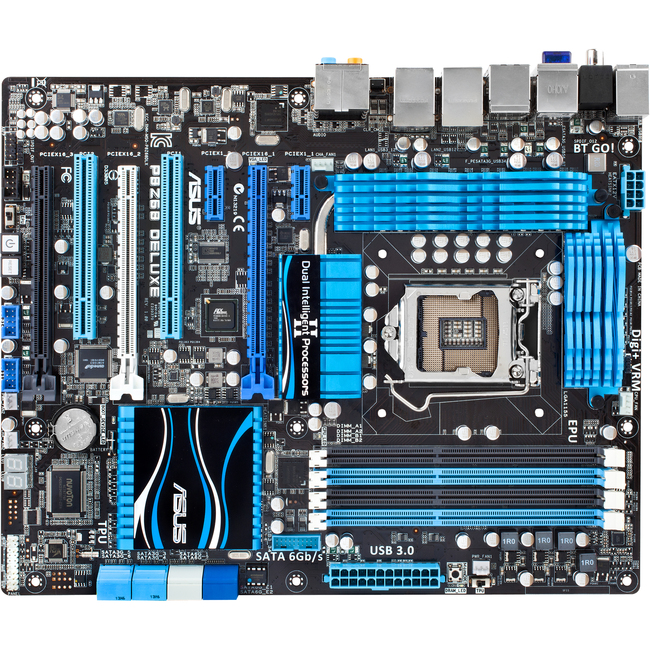

This motherboard supports the latest Intel second generation Core i7/Core i5/Core i3/Pentium/Celeron Processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7/Core i5/Core i3/Pentium/Celeron Processors are among the most powerful and energy efficient CPUs in the world.
Manufacturer:
ASUS Computer International
Manufacturer Part Number:
P8Z68 DELUXE/GEN3
Manufacturer Website Address:
usa.asus.com
Brand Name:
Asus
Product Model:
P8Z68 DELUXE/GEN3
Product Name:
P8Z68 DELUXE/GEN3 Desktop Motherboard
Product Type:
Desktop Motherboard
Number of Memory Slots:
4
Memory Form Factor:
DIMM
Maximum Memory:
32 GB
Memory Standard:
DDR3-1066/PC3-8500
Memory Technology:
DDR3 SDRAM
Controller Type:
Serial ATA/300
RAID Supported:
Yes
RAID Levels:
0
Bluetooth:
Yes
Gigabit Ethernet:
Yes
Number of Total Expansion Slots:
7
Number of PCI Slots:
2
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
5
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
3
eSATA:
Yes
Number of eSATA Ports:
2
Total Number of USB Ports:
10
Number of USB 2.0 Ports:
8
Number of USB 3.0 Ports:
2
Total Number of FireWire/i.LINK Ports:
1
Number of FireWire/i.LINK 400 Ports:
1
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Total Number of Onboard USB Ports:
6
Number of Onboard USB 2.0 Ports:
4
Number of Onboard USB 3.0 Ports:
2
Total Number of Onboard FireWire/i.LINK Ports:
1
Number of Onboard FireWire/i.LINK 400 Ports:
1
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Power Supply Supported:
EPS12V
Form Factor:
ATX
Width:
12.0"
Depth:
9.6"
Package Contents:
P8Z68 DELUXE/GEN3 Desktop Motherboard User's Manual ASUS Q-Shield 2 x SATA 3Gb/s Cable(s) 4 x SATA 6Gb/s Cable(s) 1 x SLI Bridge(s) 1 x Q-Connector(s) (2 in 1) 1 x ASUS Front Panel USB 3.0 Box(es) 1 x Support DVD
Certifications & Standards:
ErP Ready FCC CE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
WEEE
