This motherboard supports AMD A-& E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.
Manufacturer:
ASUS Computer International
Manufacturer Part Number:
F1A75-M PRO/CSM
Manufacturer Website Address:
usa.asus.com
Brand Name:
Asus
Product Model:
F1A75-M PRO/CSM
Product Name:

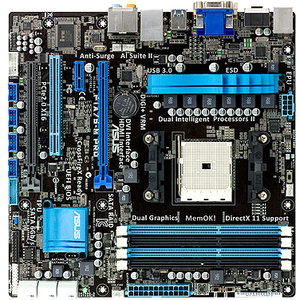

F1A75-M PRO/CSM Desktop Motherboard
Product Type:
Desktop Motherboard
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
JBOD
Number of Total Expansion Slots:
2
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
2
Number of PCI Express x16 Slots:
2
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
VGA:
Yes
HDMI:
Yes
Number of HDMI Outputs:
1
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Total Number of Onboard USB Ports:
10
Number of Onboard USB 2.0 Ports:
8
Number of Onboard USB 3.0 Ports:
2
Onboard Serial Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Power Supply Supported:
EPS12V
Form Factor:
Micro ATX
Width:
9.6"
Depth:
9.6"
Package Contents:
F1A75-M PRO/CSM Desktop Motherboard User's Manual ASUS Q-Shield 2 x SATA 6Gb/s Cable(s)
Certifications & Standards:
ErP Ready FCC CE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
