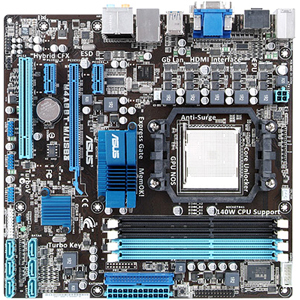

This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via Hyper Transport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.
Manufacturer:
ASUS Computer International
Manufacturer Part Number:
M4A88T-M/USB3
Manufacturer Website Address:
usa.asus.com
Brand Name:
Asus
Product Model:
M4A88T-M/USB3
Product Name:
M4A88T-M/USB3 Desktop Motherboard
Product Type:
Desktop Motherboard
Number of Memory Slots:
4
Maximum Memory:
16 GB
Memory Standard:
DDR3-1333/PC3-10600
Memory Technology:
DDR3 SDRAM
Controller Type:
Ultra ATA/133 (ATA-7)
RAID Supported:
Yes
RAID Levels:
JBOD
Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
ATI
Graphics Controller Model:
HD 4250
Graphics Controller Memory:
1 GB
Number of Total Expansion Slots:
4
Number of PCI Slots:
1
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
1
Number of IDE Interfaces:
1
Number of SATA Interfaces:
6
Total Number of Onboard USB Ports:
3
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Form Factor:
Micro ATX
Width:
9.6"
Depth:
9.6"
