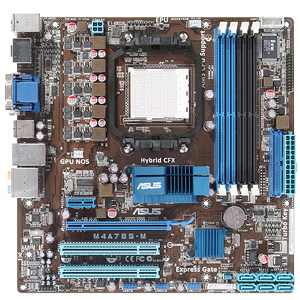

ASUS M4A785-M Desktop Motherboard - AMD Chipset

Computer > Computer Components > Motherboards

M4A785-M - Asus M4A785-M Desktop Motherboard - AMD 785G Chipset - Socket AM3 PGA-941

Availability: Out of Stock

Mfg Part# M4A785M

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

M4A785-M Desktop Board delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards. This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.

General Information

Manufacturer:
ASUS Computer International
Manufacturer Part Number:
M4A785-M
Manufacturer Website Address:
usa.asus.com
Brand Name:
Asus
Product Model:
M4A785-M
Product Name:
M4A785-M Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
AMD
Chipset Model:
785G
Total Processor Supported:
1
Processor Technology:
HyperTransport Technology
Processor Socket:
Socket AM3 PGA-941
Processor Supported:
Phenom X4
HyperTransport Speed:
2600 MHz
64-bit Processing:
Yes
Multi GPU Supported:
CrossFire

Memory

Number of Memory Slots:
4
Maximum Memory:
16 GB
Memory Standard:
DDR2-1066/PC2-8500
Memory Technology:
DDR2 SDRAM

I/O Controller

Controller Type:
Ultra ATA/133 (ATA-7)
RAID Supported:
Yes
RAID Levels:
1

Video

Onboard Video:
Yes
Graphics Controller Manufacturer:
ATI
Graphics Controller Model:
Radeon HD 4200
Graphics Controller Memory:
512 MB

Audio

Sound Controller Manufacturer:
VIA
Sound Controller Model:
VT1708S
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Number of PCI Slots:
2
Total Number of PCI Express Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1

Storage

Number of IDE Interfaces:
1
Number of SATA Interfaces:
6

Back Panel Interfaces

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
6
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
VGA:
Yes
HDMI:
Yes
Number of HDMI Outputs:
1
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
PS/2 Port:
Yes
Number of PS/2 Ports:
1

Onboard Interfaces

Total Number of Onboard USB Ports:
3
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
9.6"
Depth:
9.6"

Miscellaneous

Package Contents:
M4A785-M Desktop Board User's Manual 1 x I/O Shield 1 x UltraDMA 133/100/66 Cable 2 x SATA Cables Support CD
Additional Information:
1200MHz DDR2 memory supported via overclocking BIOS: 8 Mb Flash ROM AMI BIOS PnP DMI v2.0 WfM2.0 SM BIOS V2.5 ACPI V2.0a Support Disc: Drivers ASUS PC Probe II Anti-virus software ASUS Update
Green Compliant:
Yes
Green Compliance Certificate/Authority:
WEEE
