Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA).
Manufacturer:
American Power Conversion Corp
Manufacturer Part Number:
SURTA2200XL
Manufacturer Website Address:
www.apc.com
Brand Name:
APC
Product Line:
Smart-UPS
Product Series:
RT
Product Model:
SURTA2200XL
Product Name:

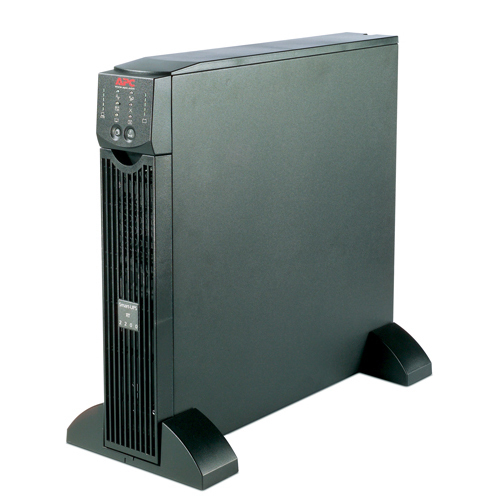

Smart-UPS RT SURTA2200XL 2200 VA Tower UPS
Product Type:
Dual Conversion Online UPS
Plug/Connector Type:
NEMA 5-20P
Receptacles:
6 x NEMA 5-15R
Load Capacity:
2.20 kVA/1.75 kW
Input Voltage:
110 V AC
Input Voltage Range:
120 V AC Nominal
Output Voltage:
120 V AC
Frequency:
60 Hz Input
Interfaces/Ports:
DB-9 RS-232
Modular Slots:
1 x SmartSlot
Height:
3.4"
Width:
17.0"
Depth:
22.0"
Form Factor:
Tower
Weight (Approximate):
60.50 lb
Package Contents:
Smart-UPS RT SURTA2200XL 2200 VA Tower UPSCD with SoftwareDocumentation CDInstallation GuideSmart UPS Signalling RS-232 CableUSB CableUser Manual
Additional Information:
Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
Certifications & Standards:
BSMICSAFCC Part 15 Class BUL 1778ULCEC-Tick
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
