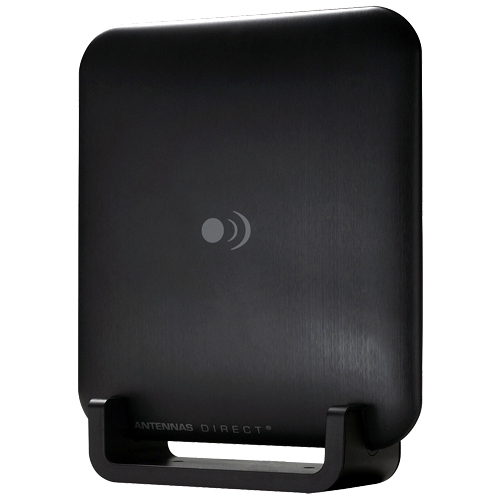

Antennas Direct ClearStream CSM-1 Television Antenna

The Micron's efficient, compact design offers excellent gain and impedance matching across the whole post 2009 UHF DTV spectrum. The ClearStream Micron is superior to existing compact antennas for receiving UHF DTV signals. Good directivity at all UHF DTV frequencies. The Micron is optimized for the UHF band, but should provide nominal reception of high VHF band signals for customers in stronger signal areas.Designed for flexibility, the Micron can be either table or wall mounted. The Micron delivers TV signals from widely located (spaced) broadcast towers, negating the need for an antenna rotator in most cases. The Micron offers an extremely wide 70 degree beam width pattern on core UHF channels. ClearStream Micron Indoor DTV / HDTV Antenna The Micron represent a new breakthrough in size and gain. Advanced design software allows these 10" x 11" antennas to be smaller and more powerful than ever before. This leap forward in efficient design allows up to 98% of the available broadcast signal to actually reachthe incoming antenna cable rather than being lost to impedance mismatches. Range: up to 25 miles, Beamwidth (Horizontal Plane): 470 to 700 MHz: 70 degrees, VSWR: Typical 2:1 or better, Max 3:1, typical less than 2:1 from 470 MHz to 700 MHz, Front to Back Ratio: Typical 15 dBi, Directivity: Standard Setup (No Reflector): Typical 4.5 dBi, Size Assembled: 10"L x 11"W x 4.5"D
