Incorporating the same compact engineering which distinguishes the ClearStream family, the C5 is targeted specifically for the high VHF band. (Ch7-13 ; 174 -216 MHz). Purposely built for high VHF, the ClearStream5™'s efficient, compact design offers excellent gain and impedance matching across the whole post 2009 VHF DTV spectrum. The ClearStream 5 is superior to existing combination antennas for receiving VHF DTV signals and offering good directivity with a peak gain of 7.6 dBi.This leap forward in efficient design allows up to 90% of the available broadcast signal to actually reach the incoming antenna cable rather than being lost to impedance mismatches. They are engineered for extra strength and durability, using powder coated aluminum for corrosion resistance and are easy to assemble.Intended to compliment existing UHF antennas, the C5 will include a low loss UHF/VHF signal combiner.With 24% of the American DTV stations moving to a high VHF assignment there exists a need for high VHF antenna that is compact yet powerful. 174- 216 MHz (Channels 7 -13),Max gain: 7.6 dBi VHF; 4.9 dBi UHF,Range: 65 Miles+,Impedance: 75 Ohm output F connection,Includes UHF/VHF Antenna Combiner,Size: 29"L x 23"W x 11.5"D,90% efficient at 200 MHz 100% compatible with all ATSC tuners,Smallest high gain VHF/UHF antenna on the market,New Engineering for core VHF DTV frequencies (Ch 7-13),Easy to Assemble,No Extra transformers needed Note: ClearStream5™ is not recommened for use with ClearStream™J- Mount *
Manufacturer:
Antennas Direct
Manufacturer Part Number:
C5
Manufacturer Website Address:
www.antennasdirect.com
Brand Name:
Antennas Direct
Product Line:
ClearStream
Product Model:
C5
Product Name:

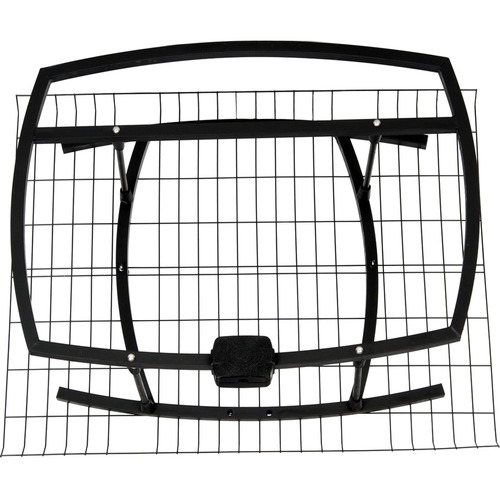

ClearStream C5 HDTV Antenna
Product Type:
Antenna
Maximum Antenna Range:
343200 ft
Frequency Band Type:
VHF
Frequency:
174 MHz to 216 MHz
Antenna Gain:
8.4 dBi
Impedance:
75 Ohm
Number of Connectors:
1
Connector Type:
F-Type
Height:
29.0"
Width:
23.0"
Depth:
11.5"
Application/Usage:
Satellite HDTV
Package Contents:
ClearStream C5 HDTV AntennaReflectorVHF Loop Element4 x Fiberglass Spacers75 Ohm Balun (internal)8 x Threaded Bolts8 x WashersUHF/VHF Diplexer2 x "u" Bolt Mast Clamps
Additional Information:
New Engineering for core VHF DTV frequencies No Extra transformers needed
Limited Warranty:
Lifetime
