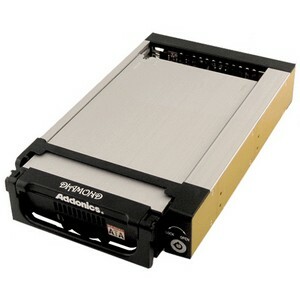

Diamond DCHDSAEU Combo Hard Drive Enclosures component to allow any 3.5" SATA or IDE hard drive to be used as a drive cartridge and as an external high performance eSATA hard drive. Constructed in heavy gauge aluminum with precision finish for smooth operation, the Diamond drive kit is built to last while at the same time providing excellent heat dissipation for the hard drive. Comes built in with the Addonics SATA direct bridge interface, the Diamond drive enclosure allows the SATA or IDE hard drive to appear as a direct connection to the host both in eSATA mode or SATA mode while at the same time isolates the SATA hard drive power and data connectors from the wears and tears incurred in some of the
removable SATA hard drive system. 2.5" SATA or IDE hard drive can also be installed into the Diamond drive enclosure using
the optional 2.5" hard drive mounting bracket.
When used as a drive cartridge, the hard drive can be swapped in and out of your computer without restarting your system. Instead of a slow tape cartridge, you enjoy the fast performance of the SATA or IDE hard drive. Once the OS detects the presence of the Diamond Drive enclosure (cartridge), it appears as an additional hard drive to the system. There is no driver to install or special software required to do data backup or restoration. Data is stored uncompressed in its own native file format and can be accessed readily by any application program. When used as external hard drive via eSATA connection to a computer, the hard drive performs at the full speed and can achieve data transfer up to 3 times the speed of the standard USB or Firewire interfaces.
Manufacturer:
Addonics Technologies
Manufacturer Part Number:
DCHDSAEU
Manufacturer Website Address:
www.addonics.com
Brand Name:
Addonics
Product Line:
Diamond
Product Model:
DCHDSAEU
Product Name:
Diamond DCHDSAEU Combo Hard Drive Kit
Product Type:
Storage Enclosure
Case Style:
Portable
Bays:
1 x 3.5" - 1/3H Internal
Drive Support:
1
Drive Type:
1 x Serial ATA/300
Interfaces/Ports:
1 x eSATA External
Package Contents:
Diamond DCHDSAEU Combo Hard Drive Kit
Diamond Drive Cradle
Power Adapter
eSATA - eSATA Data Cable 6 ft.
USB to eSATA Adapter
SATA Data Cable
User Guide
Additional Information:
This Drive Enclosure can be use External or Internal
Compatibility:
Operating Systems:
DOS
Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista
Mac
Linux
Solaris
