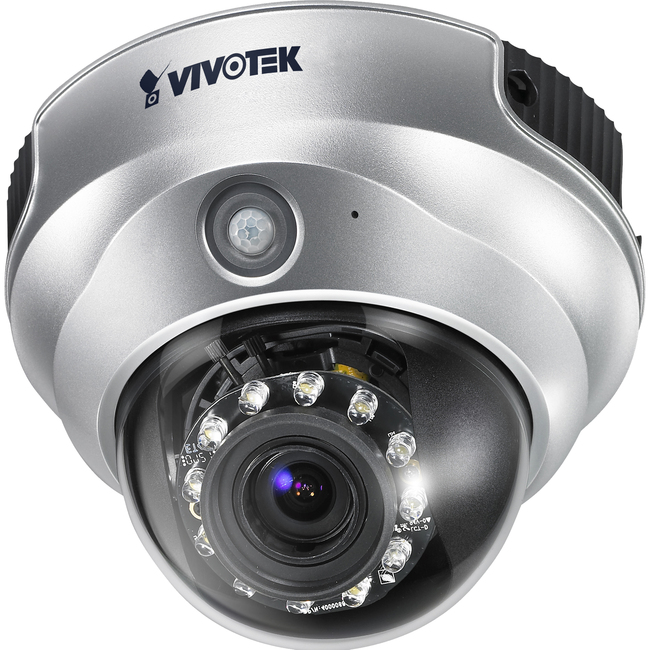

The Vivotek FD7131 is a full-featured 3-axis fixed dome network camera, designed for indoor surveillance. It comes with a wide-angle, vari-focal lens, allowing you to have a wide open view for maximum coverage. With the sophisticated 3-axis mechanical design, it offers a very flexible, easy hardware installation for either ceiling or wall mount. To prevent false alarms, it is also equipped with a PIR (Passive Infrared) sensor, which can detect motion causing temperature changes in the infrared range emitted by surrounding objects. Embedded with Vivotek's VVTK-1000 SoC, it simultaneously delivers dual streams with different resolutions up to 30fps in VGA resolution upon separate multimedia devices for real-time viewing. Additionally, by offering more advanced features such as 3GPP mobile surveillance, built-in 802.3af compliant PoE, two-way audio, FD7131 allows users to build up a cost-effective IP surveillance system for various indoor applications with ease.
Manufacturer:
4XEM Corporation
Manufacturer Part Number:
FD7131
Manufacturer Website Address:
www.4xem.com
Brand Name:
4XEM
Product Model:
FD7131
Product Name:
FD7131 Network Dome Camera
Product Type:
Surveillance/Network Camera
Image Sensor Type:
CMOS
Illumination:
Minimum 1.4 Lux
Color Supported:
Color
Focal Length:
2 mm to 4 mm
Optical Zoom:
2x
Connectivity Technology:
Cable
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
DDNS
Weight (Approximate):
1.27 lb
Package Contents:
FD7131 Network Dome Camera Alignment Sticker Screwdriver Screws and I/O Connector Power Adapter Software CD Warranty Card Quick Guide
Additional Information:
System: CPU: VVTK-1000 SoC Flash: 8MB RAM: 64MB Embedded OS: Linux 2.4
System Requirements:
OS: Windows 2000/XP/Vista Browser: Internet Explorer 6.x or above Cell Phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above Packet Video Player: 3.0 or above
Security Features:
Triple-level user access with password protection IP address filtering
Platform Supported:
PC
