3Com IntelliJack NJ220 IntelliJack Switch

Call us at 888-566-NERD(6373)

Home

Your Account

Help

Your Cart: 396 Item(s): $121478.94 View Cart

Home > Computer > Enterprise Computing > Network Switches

3COM

Availability: Out of Stock

Mfg Part# 3CNJ220CRM20

Product Information

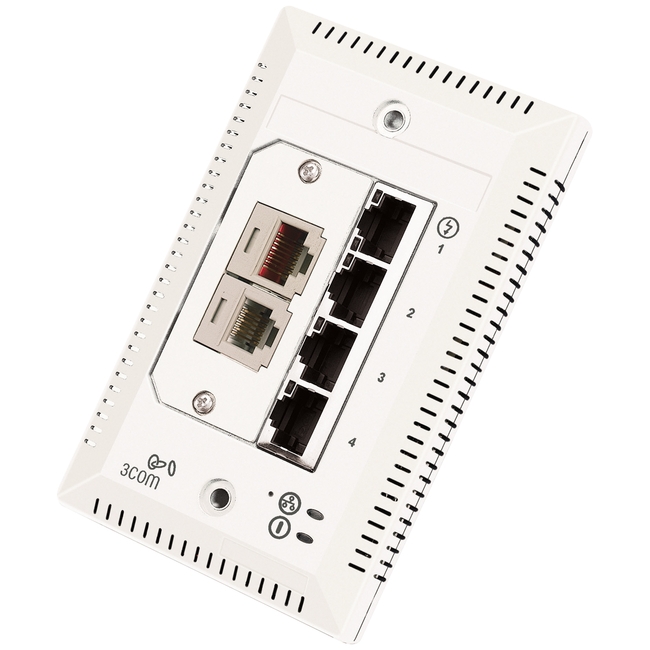

The 3Com IntelliJack Switch NJ220 is an in-the-wall, managed Ethernet switch that easily quadruples LAN infrastructure connections. Four switched ports and up to two pass-through ports connect a variety of devices via one wall outlet, making it more cost-effective than pulling additional wiring. This unique networking platform is ideal for hard-to-wire spaces such as asbestos-insulated walls, older buildings, dormitories, and modular cubicles.

General Information

Manufacturer:
3Com Corporation
Manufacturer Part Number:
3CNJ220-CRM-20
Manufacturer Website Address:
www.3com.com
Brand Name:
3Com
Product Line:
IntelliJack
Product Name:
IntelliJack NJ220 IntelliJack Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Number of Ports:
4
Fast Ethernet Port:
Yes
Interfaces/Ports:
4 x RJ-45 10/100Base-TX LAN

Media & Performance

Connectivity Media:
Twisted Pair 10/100Base-TX

Network & Communication

Switching Method:
Store-and-forward
Layer Support:
2

Management & Protocols

Manageable:
Yes
Management:
SNMP v1 802.1Q: VLANs 802.1p: traffic prioritization QoS IPv4 TOS/Diffserv
Protocols:
DHCP
Security Features:
802.1x Network Login RADIUS support MAC address filtering

Controls/Indicators

Status Indicators:
Unit power unit link port link power forwarding

Environmental Conditions

Temperature:
0 C (32.0 F) to 35 C (95.0 F) Operating
Humidity:
10% to 90% Non-condensing Operating

Physical Characteristics

Color:
Cream
Dimensions:
4.5" Height x 2.75" Width x 2.3" Depth
Shipping Dimensions:
16" Height x 13" Width x 22" Depth
Shipping Weight:
10.36 lb

Miscellaneous

Package Contents:
20 IntelliJack switches 20 pairs of mounting screws 20 blank adapter plates (no pass-through ports) 2 pairs of adapter plate screws 20 RJ-45 male/male coupler cables (for LAN downlink port with female RJ-45 connector) 1 CD-ROM with user guide, 3Com Local Configuration Manager, and 3Com Central Configuration Manager 1 Quick Start Guide
Additional Information:
Pass-through ports: One or two, voice/data, RJ-11/RJ-45 connectors Power over Ethernet: IEEE 802.3af-compliant, resistive- or capacitive-detection; some Cisco proprietary Power over Ethernet schemes. Local power: 3Com Network Jack AC Power Supply (3CNJPSL) required for LANs without Power over Ethernet capabilities.
System Requirements:
Requires 802.3af-compliant or 48 V Power over Ethernet, or 3Com AC Power Supply Management Requirements: Management console requires Pentium processor 15 MB disk space Windows 2000 or Windows NT 4.0 with Service Pack 6 installed Package Contents
Certifications & Standards:
IEEE: IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3af: Power over Ethernet IEEE 802.1Q: VLAN IEEE 802.1X: Authentication IEEE 802.1p: Traffic prioritization Building standards: NEMA-WD6 ANSI/TIA/EIA-568 ANSI/TIA/EIA-569 Safety and Emissions: FCC Class A CSA C-Tick NOM

Warranty
